49 inch vertical advertising machine technical specification
Product Description:
1. The horizontal and vertical screens can be changed at will; play time definition;
2. Time display; perpetual calendar; playlist;
3. Data card protection function; support screensaver;
4. Automatic power on and off; scrolling subtitles;
5. Power switch protection; playback diversity; multiple playback methods and audio and video formats;
6. Arbitrary screen cutting; modular design; complete management mechanism; centralized management; support for remote/local network control, and support for server operation control.
7. Flexible configuration, can expand and install various functional accessories required by customers;
8. Aluminum alloy + sheet metal structure, no sharp edges, wear-resistant anti-corrosion paint process, overall anti-riot design;
9. Advanced design concept, strict production process, stable and reliable product quality and low failure rate;
10. Power on and off the machine with one key, exempting on-site installation and debugging.
11. Display parameters and interface configuration:
| LCD screen | size | 49 |
| brand | LG/BOE | |
| type | TFT-LCD | |
| Resolution | 1920*1080 (backward compatible) | |
| Contrast | 1000:1 | |
| brightness | 350CD | |
| perspective | 178 degree full viewing angle | |
| Response time | 6MS | |
| Driver board | interface |
Mstar 358 cpu4 core 1.2GHZ GPU quad core Mali-400. DDR3 running memory 1GB storage space 8GB (expandable). 2 external USBs. 1 channel HDMI signal input. 1 RJ45 network port. 1 SD card slot supports Wifi/Bluetooth/expandable 3G/4G wireless module. |
| working environment | Maximum power | ≦120W |
| Standby power | ≦1W | |
| Operating temperature | -10℃~50℃ | |
| power supply | AC100~240V 50/60Hz | |
| Function parameter | menu language | Chinese, English and other multi-language menus (upgradeable) |
| Video Support Format | Support RM/RMVB, MKV, TS, AVI, VOB, MOV, WMV. | |
| Audio Support Format | MP3/MP4/MPEG-4 WAV | |
| Image support formats | BMP .JPEG .PNG.GIF | |
| Other supported formats | PDF, PPT, SWF, text, real-time data streaming. | |
| Split screen display | Video area, graphics and text, scrolling subtitles, LOGO area, date area, time area, weather forecast area. | |
| System upgrade mode | TF card upgrade or USB upgrade | |
| system management mode | Unified management, group management, multi-user management, remote management. | |
| Remote operation mode | Remote automatic switch machine, remote update, edit and play programs and real-time monitoring | |
| system play mode | Supports multiple playback modes such as loop playback, timing, and insertion | |
| System Architecture | Adopt advanced B/S (Browser/Server) management framework | |
| Support network | LAN, WAN, WI-FI, 5G dual-band | |
| Audio | Built-in 8 ohm 5 watt surround sound | |
| operating system | Android 5.1 | |
| Random Accessories | Certificate, Warranty Card, Antenna Rod, Power Cord, Remote Control | |
| Display size | (Horizontal) 608mm* (Vertical) 1078mm | |
| Overall size | (horizontal) 660.50mm* (vertical) 1829mm (including base) | |

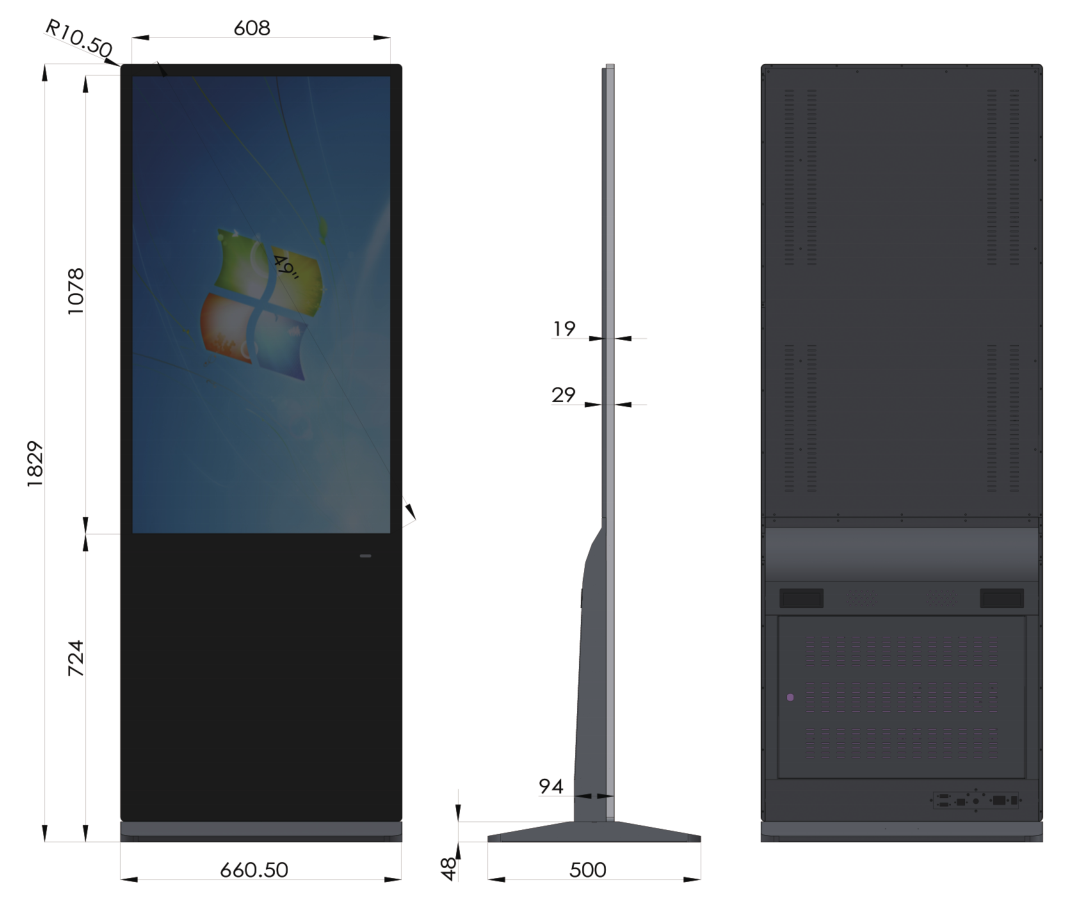

Dimensions of the whole machine (this drawing is for reference only, if you need to open holes according to the drawing, please confirm the latest drawing with the manufacturer):
Precautions:
1. Before using the machine, all instructions for use must be read and understood.
2. The instruction manual must be kept properly for future needs.
3. The warning instructions on the instruction manual of this machine must be strictly followed.
4. All instructions for use must be followed.
5. Do not use attachments not recommended by the manufacturer. Improper use of the settings may cause unexpected failures.
6. Do not press or entangle the power cord with anything. Broken power cords can cause electric shock or fire.
7. Do not attempt to repair the machine by yourself. Because there are high-voltage devices and other fragile components in the machine, it will cause various harm to the human body or the machine itself. Please be sure to ask professional maintenance personnel to repair it.
8. Do not touch the control parts not mentioned in the instruction manual. Improper adjustment of control parts not mentioned in the instruction manual will damage the machine and increase the maintenance workload of professional technicians.
9. When the machine needs to be replaced, please confirm to the maintenance personnel to use the accessories specified by the manufacturer or with the same performance as the original. Improper use of accessories can lead to hazards such as fire, electric shock, and machine damage.
10. When mounting the unit on the wall or ceiling, follow the manufacturer's recommended installation method.
11. Unplug the unit before cleaning. Use a slightly damp cloth to clean the unit. Do not use liquid cleaners or spray cleaners when cleaning.
12. When not using the machine for a long time, please unplug the AC power plug.
13. The LCD panel of this machine is made of sensitive materials, do not hit the LCD screen with anything. If the unit is dropped from a height or subjected to shock, the LCD panel may break. In this case, stop using the machine immediately.
14. The time interval between each switch is not less than 2 seconds.
